Looking for a 3 phase diesel generator to power your treadmill? You've come to the right place! We are proud to now offer Agrison generators to our customers.
Agrison offers a wide range of diesel generators of different sizes and kW to suit your needs. Our Diesel Generators are used in a variety of applications and have become a popular choice in the Australian and International market place.
72KVA or greater is required to run the dry equine treadmill. We offer the 80KVA generator for just $11,990+GST. Price does not include freight. Get in touch for a freight quote.
|

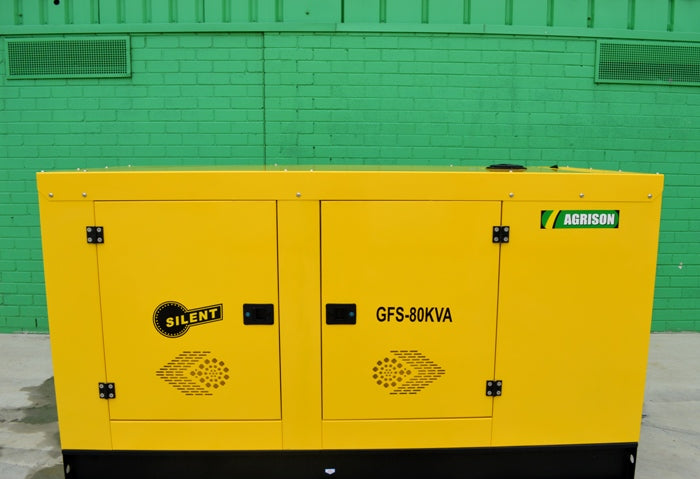

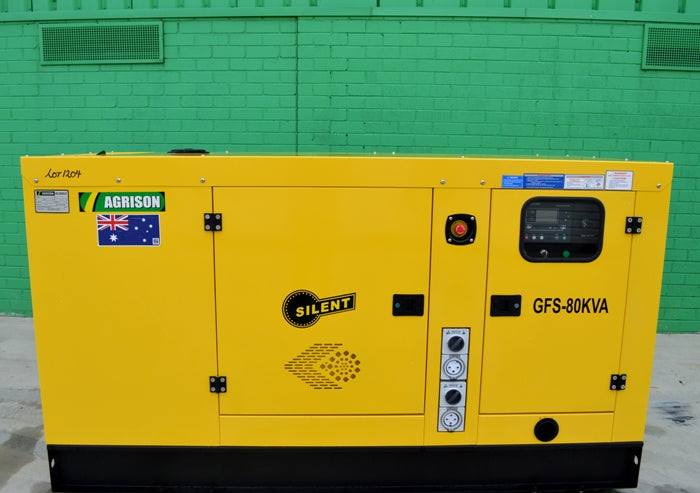

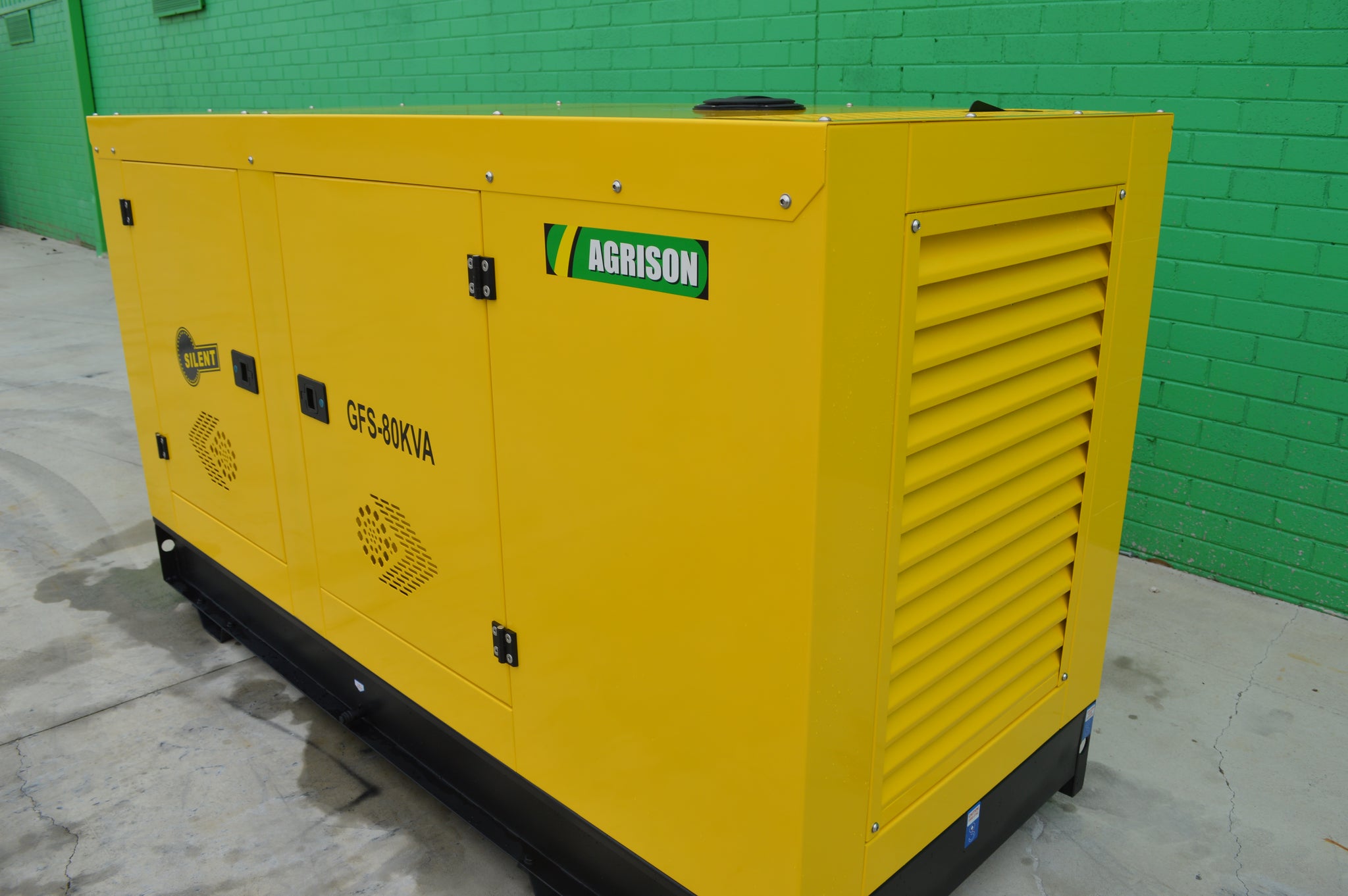

80 KVA Diesel Generators
|
|||
|
ELECTRICAL
|
|||
|
FREQUENCY
|
VOLTAGE
|
PRIME
|
STANDBY
|
| 50HZ 3 PH |
415V/230V
|
80KVA/64KW
|
88KVA/70.4KW
|
| Rated Speed |
1500RMP-50HZ
|
||
| Circuit Breaker |
4 Poles
|
||
| Power Factor |
0.8–3 Phase
|
||
|
ALTERNATOR
|
|||
|
Model
|
YHG-64KW
|
||
| Poles |
4 poles
|
||
| Winding Connections |
star
|
||
| Insulation |
Class H
|
||
| Enclosure |
IP23
|
||
| Exciter System |
Self-regulating brushless
|
||
| Voltage Regulator |
AVR
|
||
| Steady State Voltage Regulation |
+/- 1.0%
|
||
| Bearing |
Single bearing sealed
|
||
| Coupling |
Flexible disc
|
||
| Cooling |
direct drive centrifugal blower fan
|
||
|

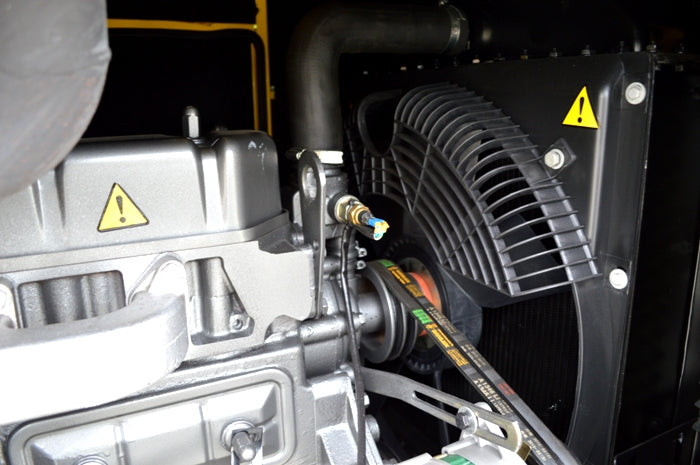

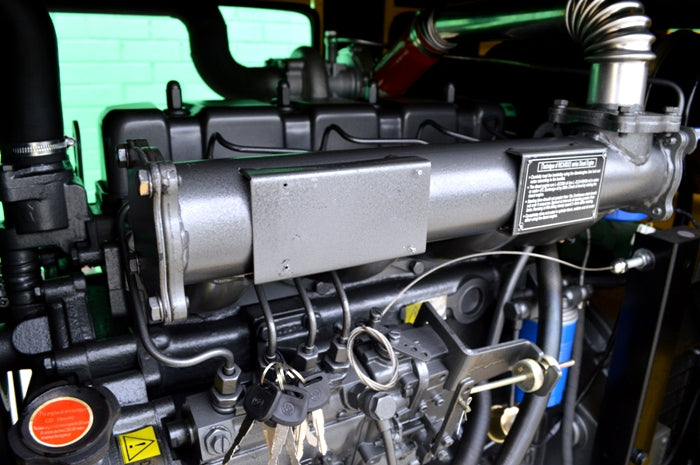

ENGINE
|
|||
| R4105ZD | 50HZ | ||
| Output Rating | KW | 56 | |
| Manufacturer and model | EuroTec | ||
| Fuel | Diesel | ||

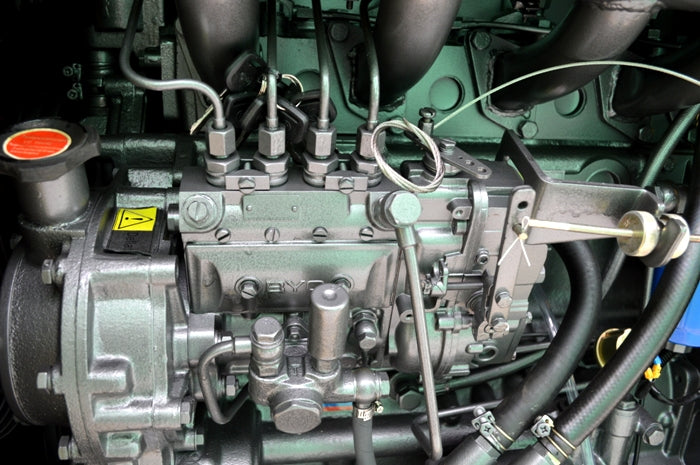

| Injection | in-line | ||
| Aspiration | turbo charger | ||
| Cylinders | 4 | ||
| Bore and Stroke | MM | 105*125 | |
| Displacement | L | 4.33 | |
| Cooling | Water cooling | ||
| Engine Oil Specification | SAE 3/11.5 | ||
| Compression Ratio | 16:1 | ||
| Engine Oil Capacity | L | 13 | |
| Governor | Mechanical | ||
| Air Filter | Dry | ||
| Fuel Consumption | |||
| 100% Load Prime | G/KW.H | ≤239 | |
| 75% Load Prime | G/KW.H | ≤179.25 | |
| 50% Load Prime | G/KW.H | ≤119.5 | |
| 100% Load Standby | G/KW.H | ≤262.9 | |
|

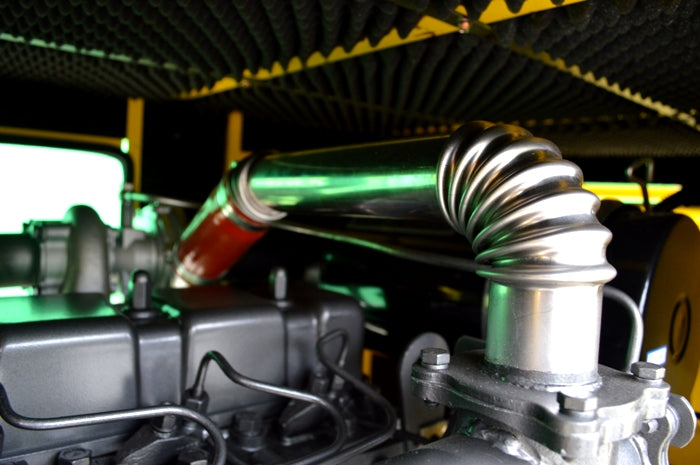

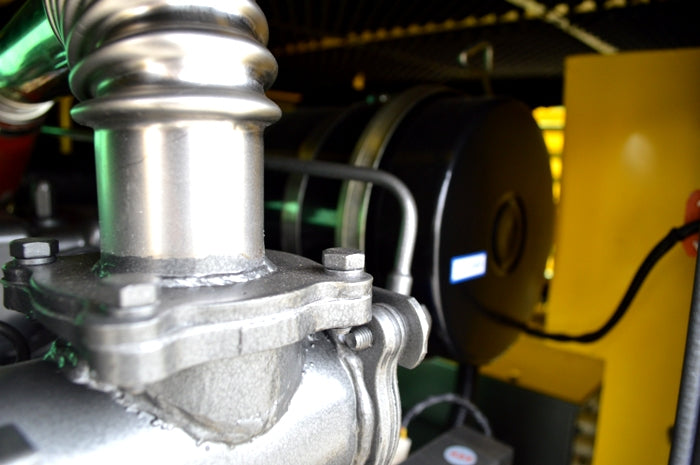

EXHAUST SYSTEM
|
|||
| Maximum Temperature 100% Standby |
℃
|
400 | |
| Exhaust Flange Size(Internal Diameter) | MM | 500 | |
|
STARTING SYSTEM
|
|||
| Starter Motor | KW | ||
| Battery Capacity | AH | 80 | |
| Auxiliary Voltage | V | 12 | |
|
FUEL SYSTEM
|
|||
| Fuel Tank Capacity | H | 8 HOURS | |
|
WEIGHT AND DIMENSIONS – OPEN
|
|||
| Length | mm | 1850 | |
| Width | mm | 800 | |
| Height | mm | 1100 | |
| Wet Weight(Standard Build) | kg | 1180 | |
| Dry Weight(Standard Build) | kg | 1150 | |
|

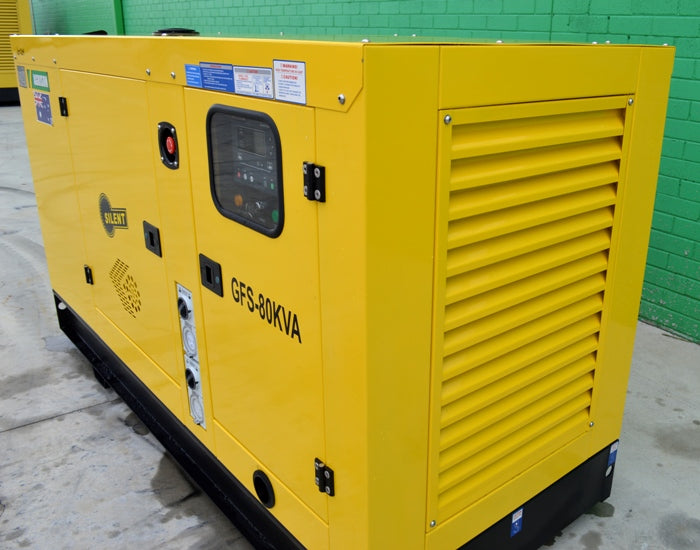

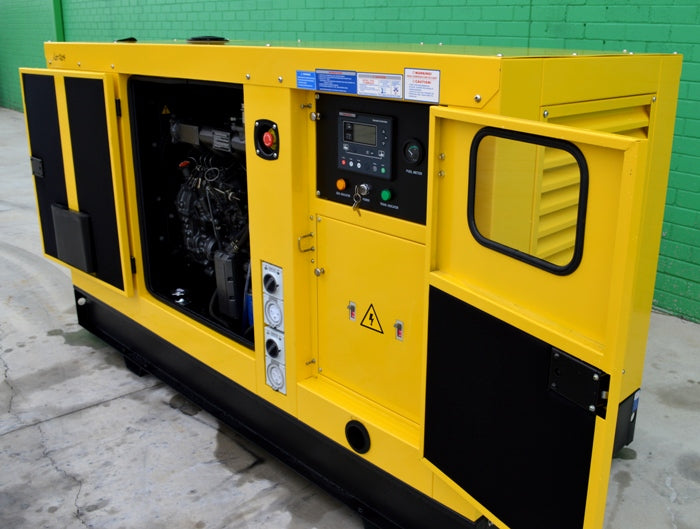

WEIGHT AND DIMENSIONS – CANOPY
|
|||
| Length | mm | 2250 | |
| Width | mm | 1000 | |
| Height | mm | 1300 | |
| Wet Weight(Standard Build) | kg | 1250 | |
| Dry Weight(Standard Build) | kg | 1220 | |
| Sound pressure(LpA) – 7m | Db | 70 | |
|
Alarms and shutdown functions
|
|||
| High Coolant Temperature | S | ||
| Low Oil Pressure | S | ||
| Unexpected Shutdown | A | ||
| Battery Charge Alternator Failure | A | ||
| Over Speed | S | ||
| Failure to Start | A | ||
| Emergency Stop | A | ||
| Alternator-high Frequency | S | ||
| S-Shutdown A – Alarm | |||
|
Structure and Spec’s are subject to change without notice.
|
|||
